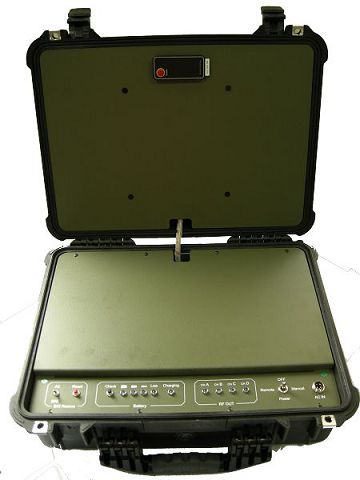

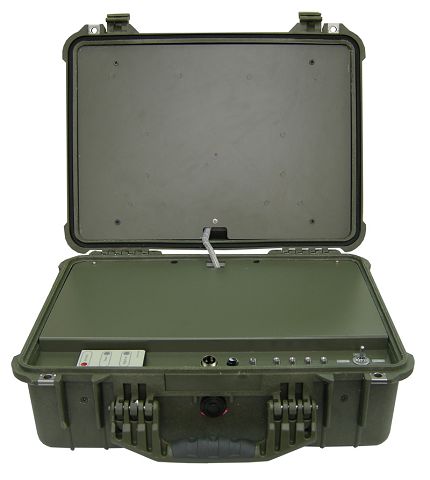

JM-2200LA is high RF power, accurate cellular jammer designed for outdoor using. It focused on military and governmental requirements. The effective blocking range is up to half of hundred meters.


The all-in-one USA Pelican case design is camouflage, easy to carry and meet the raining proof and sand-proof demand.


Synthesizes PLL
TX Frequency 851/869~894MHz, 925/936~965MHz, 1800~1990MHz, 2110~2170MHz
Antenna Built-in patch antenna Panel antenna - integrated
Output power EIRP up 50W per band
Effective range Up to 50~60 meters
Battery Lifepo4 battery, can support 2 hours operating
Charger adapter AC100V ~ 250V, 50Hz ~ 60Hz
Support using while battery chargin Yes
IR remote Control Yes
Operating temperature -10°C ~ +60°C
Humidity 5% ~ 90%
Dimension 495 x 390 x 190 mm (L x W x D)
Weight 15Kgs (System + Battery)
Warranty One year
